Bio Memory Dual Cooling -86°C Freezer
–86 °C freezers play a critical role in laboratories and production facilities by ensuring the safe storage of valuable samples. Bio Memory Dual Cooling ULT freezers are a new generation of equipment with ability to deliver excellent thermal performances and low power consumption.
This new range of ULT freezers is our recommended solution for customers who need to guarantee the highest safety for ISO certification, Good Manufacturing Process and more.
Product Description
Designed for medium and high‑capacity storage, our new range of Bio Memory Dual Cooling ULT freezer delivers very low power consumption and high thermal performance. It’s built to support demanding laboratory workflows without compromise.
- Low power consumption, <8 kWh/day* according to energy star protocol
- High temperature homogeneity, up to +/- 2.5 °C*
- Dual cooling circuit to ensure optimal safety of your samples
- High-capacity storage for up to 60,000 tubes (2 ml)
Power Consumption
With 7.9 kWh/24h* (energy star protocol), our Bio Memory dual cooling range offers very low cost of operation. By combining advanced insulation technologies, with last generation of VIP with highly efficient dual cooling system, we ensure powerful -80°C storage with very low energy consumption. Double level of sealing, on internal doors and external door improve insulation significantly.
High performances (Technical Note – Bio Memory Dual Cooling Performances)
- Excellent temperature homogeneity, up to +/-2,5°C**
- Faster temperature recovery time after door openings compared to
existing dual cooling technologies
- Fast pulldown temperature
- Patented LBA Forming Technology : Midea patented forming agent can provide the highest density cabinet
Dual Cooling System
- Our dual cooling system ensures optimal safety of your samples.
- Using two independent refrigeration systems, if one system fails, the other can maintain
the freezer’s temperature uniformly in the -80℃ range.
- Last generation of Variable Speed Compressors for best efficiency
- D-Shape evaporator for maximum thermal efficiency
Improved Design
- VIP PLUS vacuum insulation provides up to 30% more storage capacity
- Ingenious handle design helps you easy to open and close door
- Pressure valve allows users to re-open the main door quickly
- Tool-free removable filter design, easy and quick to clean the filter
Smart Interface

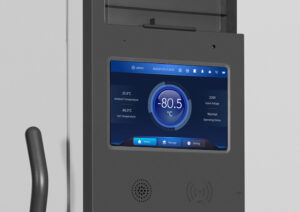

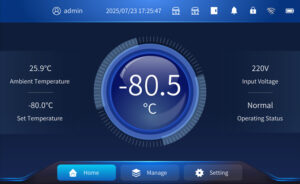

- Large 10.1’’ touch screen
- Interface intuitive based on visual management
- Real time display inner temperature
- Multifunction alarm: high, low temperature, power failure and more
Designed to Allow Smooth After Sale Service
- With ability to run at -80°C for each cooling circuit, if one compressor failed, you have time to manage the repair without any emergency
- Service of Froilabo: a team of technicians specialized in low temperature cold to maintain your freezers, trained on ULT freezers cooling circuit to offer best level of service
- Send your requests service@froilabo.com for preventive maintenance contracts
Refrigerants compliant with the new F-Gas regulations
As global warming and ecology are at the heart of our concerns, the refrigerants used in all Froilabo freezers comply with F-Gas regulations (EU No. 517/2014)
*according to energy star protocol
**568 L model
Model
| Product Number | Description | External Dimensions (H x W x L) |
|---|---|---|
| BMDC56880G | Bio Memory Dual Cooling -86°C freezer 568 L | 1980 x 885 x 995 |
| BMDC70880G | Bio Memory Dual Cooling -86°C freezer 708 L | 1980 x 1030 x 995 |
| BMDC81880G | Bio Memory Dual Cooling -86°C freezer 818 L | 1980 x 1175 x 995 |
Options and Accessories
| Product Number | Description |
|---|---|
| MBS-1 | Liquid Nitrogen Back-up System: Cooling Temperature -86°C, Temperature range -40°C~- 86°C |
| BS-1 | CO2 Back-up System: Cooling Temperature -70°C, Temperature range -40°C~- 70°C |
| MDCJ-532-A304 | 5*3 304 stainless steel freezer rack Dimension(mm)140*413*293 Per Set: 6 racks (storage 90 Boxes, 9000 2ml cryo tubes) |
| MDCJ-542-A304 | 5*4 304 stainless steel freezer rack Dimension(mm)140*549*293 Per Set: 16 racks (storage 320 Boxes, 32000 2ml cryo tubes) |
| MDCJ-552-A304 | 5*5 304 stainless steel freezer rack Dimension(mm)140*685*293 Per Set: 16 racks (storage 400 Boxes, 40000 2ml cryo tubes) |
| MDCJ-552-A304 | 5*5 304 stainless steel freezer rack Dimension(mm)140*685*293 Per Set: 16 racks (storage 500 Boxes, 50000 2ml cryo tubes) |
| MDCJ-552-A304 | 5*5 304 stainless steel freezer rack Dimension(mm)140*685*293 Per Set: 24 racks (storage 600 Boxes, 60000 2ml cryo tubes) |
