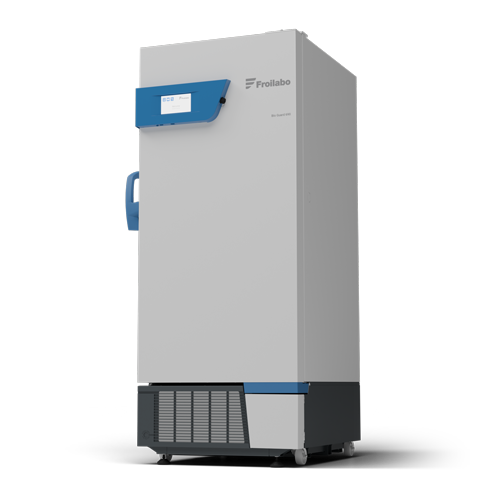

Bio Guard 690
Maximum safety of samples, without compromise on performance, our robust design is built to last.
Built for Demanding Workflows: BioGuard is a member of the Bio Memory family range of freezers – our benchmark range for outstanding performance and long-term reliability. The Bio Guard 690L -86°C freezer is engineered for daily use, supporting multiple users and frequent door openings without compromising sample safety.
Excellent Temperature Homogeneity: With a temperature uniformity of better than +/- 5°C, Bio Guard delivers the best-in-class homogeneity, even in large volume freezers of 690L
Low Power Consumption: Exceptional energy efficiency is achieved though our latest generation of VIP vacuum insulation combined with an advanced foaming process. Providing you with a cost-efficient unit without compromise on quality
Designed for Daily Use: Our cooling circuit ensures rapid temperature recovery after each door opening, ensuring continual safety of samples even in demanding environments
Product Description
Designed for high‑capacity storage and everyday efficiency, this model delivers exceptional performance, smart usability, and advanced safety options — all within a compact footprint. It’s built to support demanding laboratory workflows without compromise.
- New smart touchscreen interface for intuitive, streamlined operation
- Fast pull-down time, our freezer reaches -80°C from ambient in just 4.6 hours
- High-capacity storage for up to 48,000 tubes (2ml)
- Slim 88cm width for easy movement through standard doorway

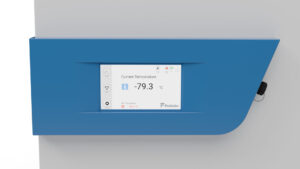

New Intuitive Interface with Large Touchscreen
Our advanced control interface brings every essential function together in one place, making the daily operation simpler, faster, and more secure. Designed for modern laboratories, it delivers intuitive navigation, powerful monitoring tools, and enhanced safety features to always protect your samples.
- Large touch screen that centralizes all freezer functions for intuitive operation
- Safety at every step: Contains visible and audible alarms, lockable doors, and multiple access levels with password protection (user, admin, service, and factory)
- Our BOSS system provides up to 30 hours of protection during power failures
Power Consumption
Our ULT freezers are designed to deliver outstanding performance whilst minimising environmental impact. By combining advanced insulation technologies with highly efficient cooling systems, we ensure powerful -80°C storage with low energy consumption
To reduce your carbon footprint, our ULT freezers are designed to deliver maximum performance with minimal energy use, consuming just 11.3kWh/day for the 690L model (Energy star calculation – in asterix )
High Performance (link to tech note)
- Excellent temperature homogeneity
- Fast temperature recovery time after door openings
- Fast pulldown temperature
Cryo-accumulator Option
Achieve optimized performance with our cryo-accumulator option. The cryo-accumulator ensures a delayed temperature rise in the event of power failure giving the user up to 8 hours to safeguard samples. Room temperature, volume of content within freezers and frequency of door openings can all affect temperature changes. Link of the technical note
A freezer Created According to your Needs
- Freezer width of 87.5 cm (possibility to pass 80 cm wide doors by dismounting the door handle)
- Unique flat gasket design for anti frost formation
- Heated decompression valve for instant reopening of the door
- Stainless steel inner bowl with rounded edges for easy cleaning
- Removable cassette filter that can be cleaned and easily interchanged
Wide Range of Interior Equipment
- Sliding and anti-tilting shelves (optional),
- Complete range of lateral access racks,
- Complete range of drawer storage units,
- Drawers suitable for storing microplates,
- Baskets suitable for bulk storage,
- Possibility of realization of custom storage elements.
Designed for Allowing the Best After Sale Support
- Diagnostic Menu, with full access on performances of key components
- Secured remote access if needed
- Service of Froilabo, the manufacturer of the unit: a team of technicians specialized in low temperature cold to maintain your freezers,
- Send your requests service@froilabo.com for preventive maintenance contracts
Refrigerants Compliant with the New F-Gas Regulations
As global warming and ecology are at the heart of our concerns, the refrigerants used in all Froilabo freezers comply with F-Gas regulations (EU No. 517/2014).
Model
| Product Number | Description | External Dimensions H x W x L (mm) |
|---|---|---|
| BMBG69086G | Bio Guard Vertical freezer -86°C 690L | 1990 x 970 x 875 |
Options
| Product number | Options & Accessories |
|---|---|
| BM/CO2E | Liquid CO2 injection backup system (autonomy 15h, flexible 3m included) for Evolution & Trust range |
| BM/CRYO4E | Cryo-accumulators 690 L |
| BM/OPT2 | Pt 100 ohms 4-20 mA x3 probe, (-100°C to +50 °C), terminal block output at the back |
| BM/OPT4E | Pt 100 ohms x3 probe, (-100°C to +50 °C), DIN output at the back |
| BM/OPT5E | Sensor with 3m cable length for field calibration outside the freezer |
| BM/OPT13 | 4-20mA output |
| BM/OPT20 | Support for padlock closure |
| BM/OPT22 | 5 compartment option |
| BM/OPT23 | 6 compartment option |
| BM/ETA2E | Shelf for BIO GUARD/BM TRUST/EVO 340/515/690 (L x P: 597 x 743 mm) in stainless steel |
| BM//QIQO | Delivery of a IQ/OQ file and completion of the process |
| Aluminum Rack: minimum of 4 units | |
| BM/EL3E690AC | Storage elements aluminium 3 levels for BM 340/515/690/1000,15 compartments |
| BM/EL4E690AC | Storage elements aluminium 4 levels for BM 340/515/690/1000, 20 compartments |
| BM/EL5E690AC | Storage elements aluminium 5 levels for BM 340/515/690/1000, 25 compartments |
| BM/EL6E690AC | Storage elements aluminium 6 levels for BM 340/515/690/1000, 30 compartments |
| Steel Drawer : on demand | |
| BM/EL4T690 | Element 4 drawers in stainless steel. Int dim drawer L x P x H: 280 x 705 x 80 mm |
| BM/EL5T690 | Element 5 drawers in stainless steel. Int dim drawer L x P x H: 280 x 705 x 63 mm |
| BM/EL6T690 | Element 6 drawers in stainless steel. Int dim drawer L x P x H: 280 x 705 x 53 mm |
| Aluminum Drawer : minimum of 4 units | |
| BM/EL3T690A | Element 3 drawers in aluminium, body in stainless steel. Int dim drawer L x P x H: 280 x 705 x 109 mm |
| BM/EL4T690A | Element 4 drawers in aluminium, body in stainless steel. Int dim drawer L x P x H: 280 x 705 x 80 mm |
| BM/EL5T690A | Element 5 drawers in aluminium, body in stainless steel. Int dim drawer L x P x H: 280 x 705 x 63 mm |
| BM/EL6T690A | Element 6 drawers in aluminium, body in stainless steel. Int dim drawer L x P x H: 280 x 705 x 53 mm |
