Dragon
The temperature forcing system designed and developed by Froilabo for all your thermal tests.
Product Description
Superior temperature control

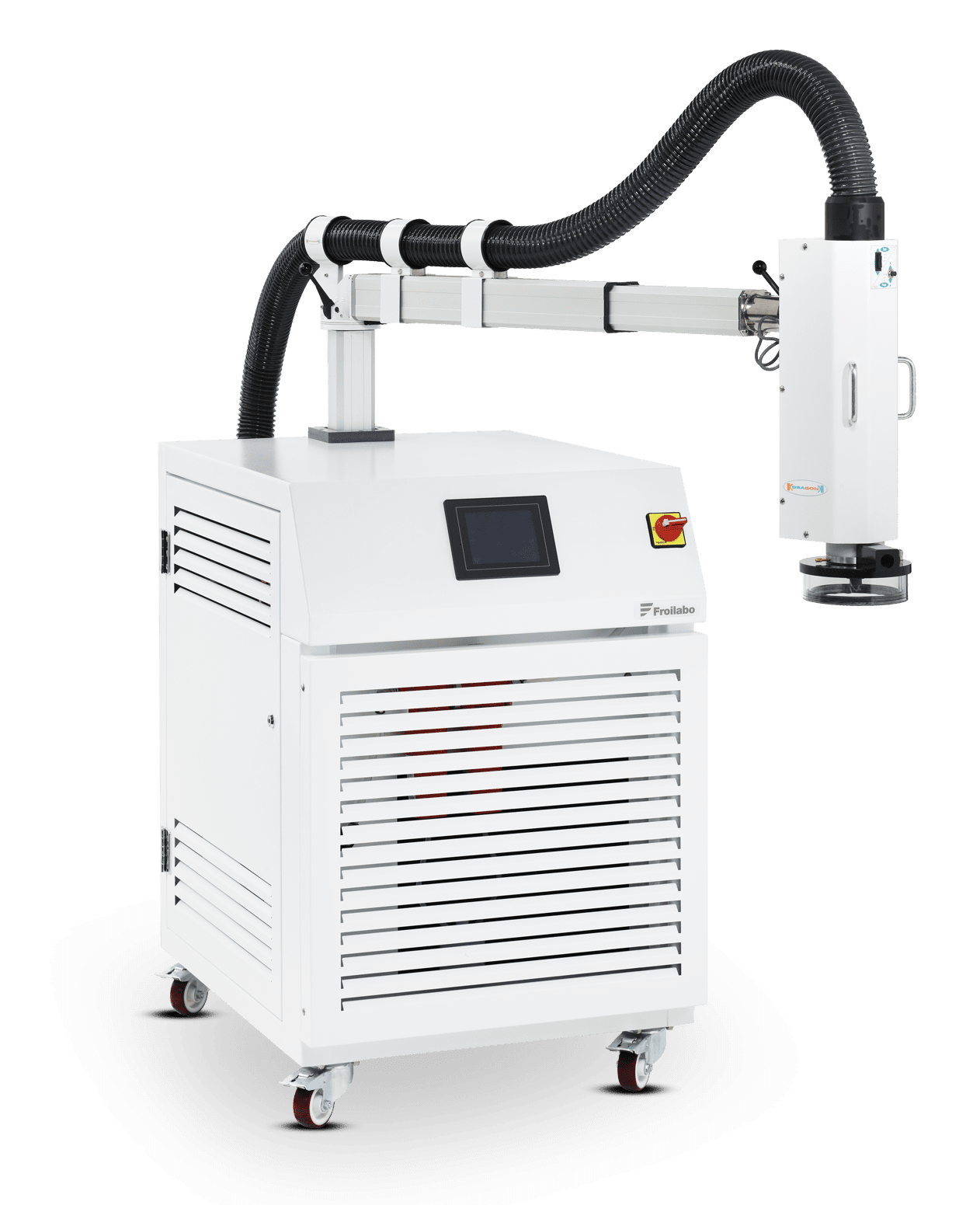

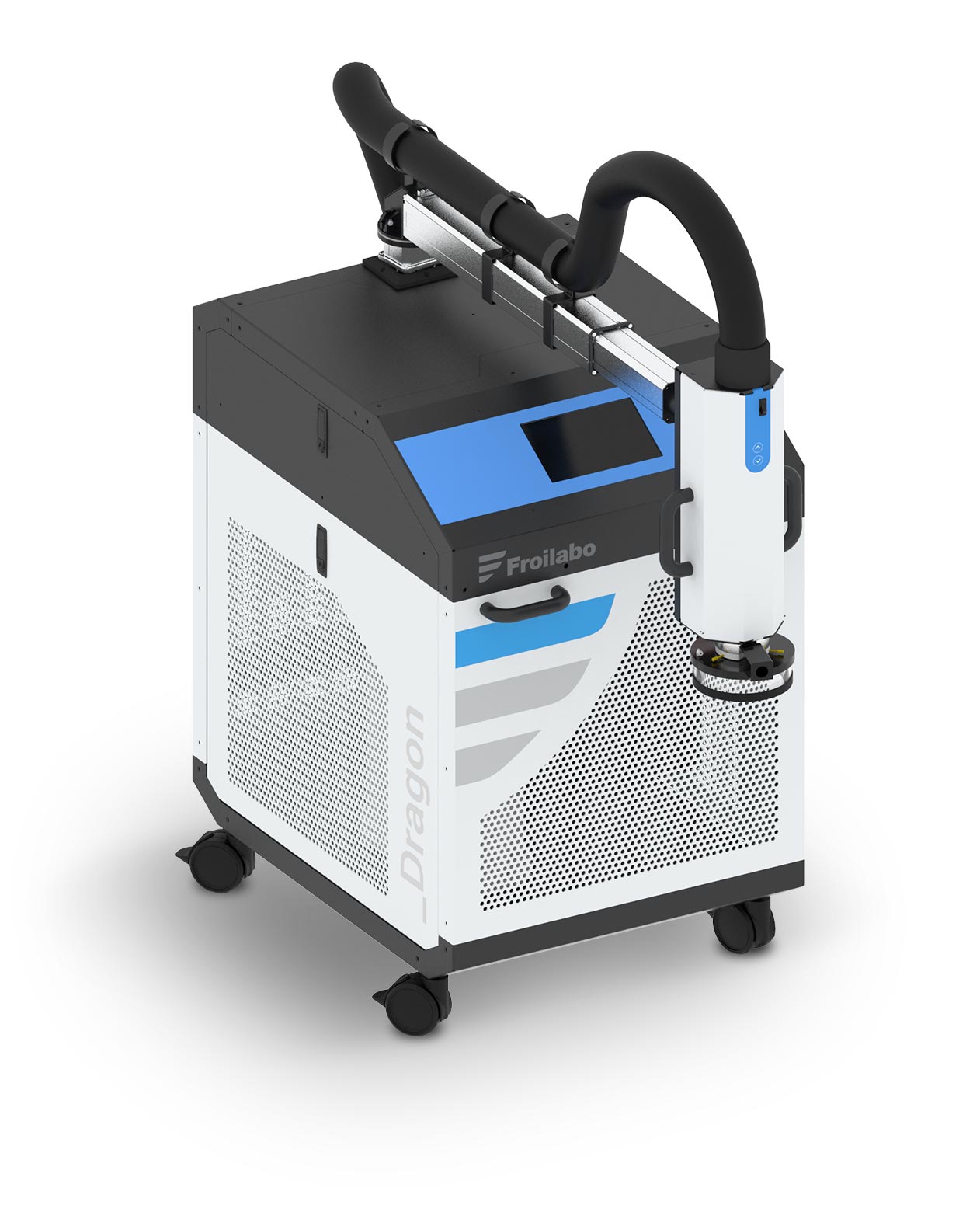

The Dragon temperature forcing system can operate between -75 °C and +250 °C with adjustable dry airflow up to 8.4 L/s and excellent thermal stability <+/-0.3°C. The Dragon can be used 24 hours a day, 7 days a week and is capable of rapid temperature rise and fall from -55 °C to +125 °C in 7 seconds and from +125 °C to -55 °C in 14 seconds. At the end of a test campaign, the system blows dry air into the workspace to prepare it for the next campaign. For safety, when the arm is in the up position airflow is attenuated, noise reduced and temperature adjusted to +20 °C, automatic return to operating parameters when the head is returned to the down position.
International test standards
The Dragon is suitable for use with international test standards MIL-STD 883, MIL-STD 750 and JEDEC.
Plug and play technology
There is no requirement for LN2 or CO2. The 2 guide handles and the 4 swivel castors (with brakes) make it very easy to move the Dragon into location for testing and the 4-axis steerable motorised arm and head can adapt to your needs. The large password-protected touch screen gives access to the 3 working modes: manual, automatic or programmable, to consult and modify the 23 adaptable temperature cycles (48 steps each). The Dragon is equipped with an RS232 as standard, Board IEEE / 488.1 / GPIB is available for a perfect integration with your other systems.
Fully customisable temperature forcing system
The Dragon is a versatile system in its standard form and may also be customised on request. Please talk to us about your unique requirements, or see our list of common customisations:
- Borosilicate bell
- GPIB Interface
- Footswitch (IEEE)
- ESD Kit
- Nozzle
- Custom Silicone Plates
- Customized special boxes
- Different types of thermocouples
Model
Reference | Description | External dimensions W x D x H (mm) |
---|---|---|
Dragon | Thermal air conditioner -75°C to + 250°C | 900 x 700 x 1040 |
Options
Reference | Description |
---|---|
DRAG/DRY | Remote control via digital communication |
DRAG/DRY | Absorption air dryer with a dew point of -80 ° C |
DRAG/MAT1 | Foam carpet 500 x 500 x 10 mm |
DRAG/MAT2 | Antistatic mat |
Accessories
Reference | Designation |
---|---|
DRAG/BUSE1 | Nozzle dimensions W x L x H (mm) Exteriors: 45 x 45 x 35 Internals: 34 x 34 x 20 |
DRAG/BUSE3 | Nozzle dimensions W x L x H (mm) Exteriors: 75 x 50 x 35 Internals: 60 x 37 x 20 |
DRAG/BUSE4 | Nozzle dimensions W x L x H (mm) Exteriors: 75 x 75 x 35 Internals: 65 x 65 x 20 |
DRAG/BUSE5 | Nozzle dimensions W x L x H (mm) Exteriors: 80 x 45 x 35 Internals: 70 x 35 x 20v |
DRAG/BUSE6 | Nozzle dimensions W x L x H (mm) Exteriors: 95 x 48 x 35 Internals: 80 x 40 x 20 |
DRAG/BUSE7 | Nozzle dimensions W x L x H (mm) Exteriors: 100 x 45 x 35 Internals: 90 x 35 x 22 |
DRAG/BUSE9 | Nozzle dimensions W x L x H (mm) Exteriors: 125 x 54 x 35 Internals: 110 x 40 x 20 |
DRAG/BUSE 17 | Nozzle dimensions W x L x H (mm) Exteriors: 110 x 110 x 65 Internals: 100 x 100 x 50 |
DRAG/BUSE18 | Nozzle dimensions W x L x H (mm) Exteriors: 105 x 90 x 35 Internals: 95 x 80 x 25 |
DRAG/BUSE19 | Nozzle dimensions W x L x H (mm) Exteriors: 100 x 100 x 37 Internals: 90 x 90 x 25 |
