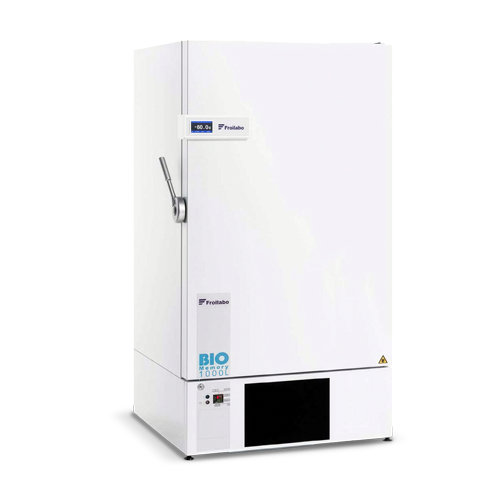

Bio Memory BMT1000 -86°C Freezer
Our Bio Memory range has earned its reputation in the market, delivering proven reliability and continuous sample protection – all with an 1,000 L capacity that maximises storage without compromise on performance.
Robustness: Our Bio Memory range was our first ULT freezer line, and has become a benchmark for exceptional performance and long-term reliability
Large Volume: With a 1,000 litre capacity, we deliver excellent storage options all within a compact footprint
Maximum Sample Protection: with the BoSS (Board Substitution) system,, the freezer keeps the compressor running in the event of an electronic fault, ensuring continuous protection for your samples
Product Description
Largest Volume on the Market
The BMT1000 combines a large capacity with outstanding storage efficiency, offering space for up to 72,000 tubes without increased your laboratory footprint.
A ULT Freezer Built To Last
Our Bio Memory range offers continuous reliability due to our advanced construction, with excellent performance and reliability.
Intuitive interface
We offer an touch screen interface for easy-to-use functionality.
A freezer created for your laboratory
- Handle with progressive tightening,
- Temperature display at eye level on BMT,
- Inner tank stainless steel.
Protection and security of your samples
The BMT 1000 is equipped as standard with the BoSS (Board substitution) system that allows you to directly power the compressors in the event of an electronic fault, thus avoiding the need for an emergency freezer for an electronic failure.
Control is entrusted to an industrial controller for exemplary reliability and durability.
Wide range of interior equipment
- Full range of side access racks
- Complete range of drawer storage units
- Drawers suitable for storing microplates
- Baskets suitable for bulk storage
A Service Team Dedicated to the Protection of Your Samples
Our After Sales Service is made up of a team of technicians specializing in -86°C freezers to maintain your freezers and guarantee the protection of your samples.
Refrigerants Compliant with the New F-Gas Regulations
As global warming and ecology in general are at the heart of our concerns, the refrigerants used in all Froilabo freezers comply with the new F-Gas regulations (EU No. 517/2014)
Model
| Reference | Description | External dimensions H x D x L (mm) | Natural gas version |
|---|---|---|---|
| BMT 1000 | Vertical freezer -86 ° C 1000L with touch screen | 1990 x 875 x 1200 | ✓ |
Options
| Reference | Description |
|---|---|
| BM/CO2 | Liquid CO2 injection backup system (autonomy 15h, flexible 3m included) |
| BM/CRYO5 | Cryo-accumulators 1000 L |
| BM/ETA3 | Shelf for BM 1000 |
| BM/EL2T175 | Element 2 drawers in stainless steel. Int dim drawer L x P x H: 278 x 402 x 142 mm |
| BM/EL3T175 | Element 3 drawers in stainless steel. Int dim drawer L x P x H: 278 x 402 x 93 mm |
| BM/EL4T175 | Element 4 drawers in stainless steel. Int dim drawer L x P x H: 278 x 402 x 68 mm |
| BM/EL5T175 | Element 5 drawers in stainless steel. Int dim drawer L x P x H: 278 x 402 x 54 mm |
| BM/ELMP175 | Stainless steel storage unit with 2 drawers for 72-well plates |
| BM/EL3E175 | Stainless steel storage element 3 levels |
| BM/EL4E175 | Stainless steel storage element 4 levels |
| BM/EL5E175 | Stainless steel storage element 5 levels |
| BM/TIR | Stainless steel storage drawer |
| BM/12EBV | Vertical element with space for 12 cryoboxes 133 x 133 x 51 mm |
| BM/OPT2 | Pt 100 ohms 4-20 mA x3 probe, (-100°C to +50 °C), terminal block output at the back |
| BM/OPT13 | 4-20mA output |
| BM/OPT18 | Dry contact NO/C/NF, external box with magnet |
| BM/OPT19 | BoSS system, factory assembly, net price |
| BM/OPT20 | Support for padlock closure |
| BM/EL3E690AC | Storage elements aluminium 3 levels for BM 340/515/690/1000,15 compartments |
| BM/EL4E690AC | Storage elements aluminium 4 levels for BM 340/515/690/1000, 20 compartments |
| BM/EL5E690AC | Storage elements aluminium 5 levels for BM 340/515/690/1000, 25 compartments |
| BM/EL6E690AC | Storage elements aluminium 6 levels for BM 340/515/690/1000, 30 compartments |
| BM/QIQO | Provision of IQ/OQ file and realization f the on-site performance |
User Manual
Click to access user manual.
