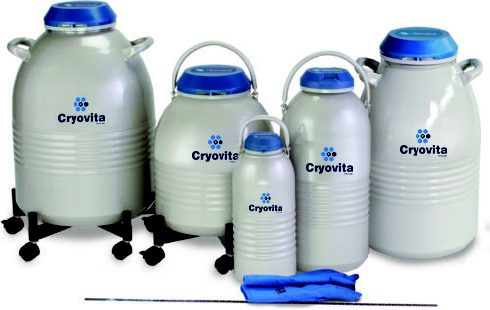

Arctic XT - Small Freezers
The Arctic XT series is designed for the everyday requirements of a laboratory or biorepository. Perfect for long term sample storage thanks to the exceptional extended hold times. Universal canister compatibility with 5 models available.
Product Description
- Narrow necktubes which lowers the NER (normal evaporation rate)
- Designed for extended hold times
- Magneformed necktube
- Versatile storage system with lockable lid
- Universal canister compatibility
- Superior vacuum performance and insulation technology which delivers maximum hold times
- 3XTL & 8XTL models are low profile design
Technical Specifications
| ARCTIC XT MODELS | 3XTL | 8XTL | 10XT | 20XT | 34XT |
|---|---|---|---|---|---|
| LN₂ Capacity – Litres | 3 | 8 | 10 | 20.7 | 34 |
| Hold Time – Days | 27 | 80 | 100 | 230 | 340 |
| Evaporation Rate – Litres/Days | 0.11 | 0.1 | 0.1 | 0.09 | 0.1 |
| Necktube Diameter (mm) | 51 | 51 | 51 | 51 | 51 |
| Outside Diameter | 193 | 396 | 290 | 396 | 478 |
| Height (mm) | 437 | 483 | 605 | 655 | 668 |
| Weight – Empty (kg) | 3.27 | 8.89 | 7.48 | 11.79 | 15.76 |
| Weight – Full (kg) | 5.67 | 15.33 | 15.56 | 28.49 | 43.23 |
| Number of Canisters | 6 | 6 | 6 | 6 | 6 |
| .5 cc Straws on Canes | N/A | N/A | 540 | 540 | 540 |
| .5 cc Straws – bulk (1 Level) | 750 | 750 | 750 | 750 | 750 |
| Number of 1.2 & 2.0 ml Vials | N/A | N/A | 150 | 150 | 150 |
