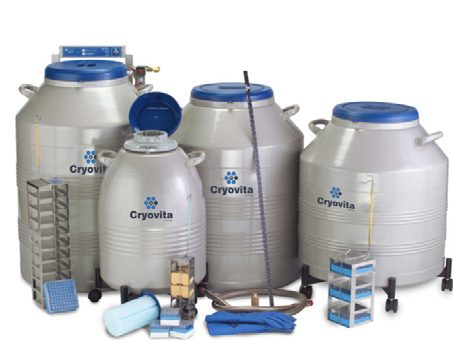

Darwin Series - Racking System
Darwin inventory racking systems are designed for liquid- or vapour- stage phase vial storage in convenient box-type racks. The series was created with laboratories in mind and contains four models: LS750, LS3000, LS4800 and LS6000
Product Description
- For liquid or vapour phase vial storage in box type racks
- In vapour phase storage, the top of the rack temperature is -190°C
- Optional CS100 controller available on the LS4800 & LS600 models
- Convenient storage system featuring rack index location ring and internal location fixture, computer compatible box storage for simple inventory management
- High strength aluminium body and magneformed necktube design
- Super vacuum performance with super insulation provides maximum holding times
- Security – Accessory low-level alarm and CS100 control are available with remote connection capability
- Lockable lids
Technical Specifications
| Reference | LS750 | LS3000 | LS4800 | LS6000 |
|---|---|---|---|---|
| LN₂ Capacity – Litres | 35 | 81 | 130 | 165 |
| Static Holding Time – Days | 130 | 106 | 153 | 194 |
| Evaporation Rate – Litres/Days | 0.27 | 0.76 | 0.85 | 0.84 |
| Necktube Diameter (mm) | 119 | 216 | 216 | 216 |
| Outside Diameter (mm) | 478 | 683 | 683 | 683 |
| Height (mm) | 681 | 732 | 982 | 991 |
| Weight – Empty (kg) | 17.69 | 31.75 | 40.82 | 54.88 |
| Weight – Full (kg) | 45.95 | 97.16 | 141.7 | 186 |
| Number of Racks | 6 | 6 | 6 | 6 |
| Number of Shelves/ Rack | 5 | 5 | 8 | 10 |
| 2ml Vial Capacity | 750 | 3000 | 4800 | 6000 |
