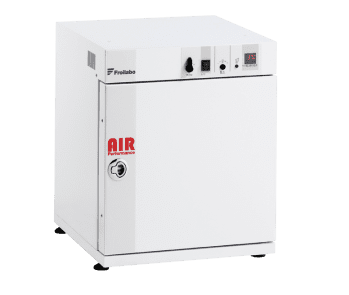

Air Performance Ovens
The Performance oven range has been developed to comply with all applications requiring speed, precision and homogeneity. It is specifically well adapted for drying, thermal tests and sterilisation. The high efficiency fan will allow you to save precious time.
Product Description
- 3 volumes
- 8 degrees / min, maximum slope
- 30 minutes to go up to 150°C
- 100 years of know-how
3 volumes for all your needs
The new generations of Air Performance ovens have been designed for precision thermal tests of ambient temperature + 10°C to + 250°C. This range of ovens is available in 3 volumes: 60, 120 and 240 liters.
The interface intuitive
The range of Air Performance ovens offers easy-to-use control for drying, sterilization and thermal testing. Color display of the set and actual temperature in the oven.
Protection and security
This range of ovens provides total safety for the operator, the environment and the product thanks to its class II overtemperature safety.
A drying oven for your laboratory
Adjustable shelves, a simplified control panel, anti-tilt shelving and an easy closing door guarantee ergonomic work.
Maintenance fast and simplified
With its national after-sales service, the Froilabo company can respond quickly to all your requests for intervention and also offer you maintenance contracts.
Model
| Reference | Description | External dimensions W x D x H (mm) | Temperature range |
|---|---|---|---|
| AP60 | Air Performance Forced Convection Oven 60L | 526 x 579.5 x 640 | Ambient +10°C to 250°C |
| AP120 | Air Performance Forced Convection Oven 120L | 626 x 679.5 x 750 | Ambient +10°C to 250°C |
| AP240 | Air Performance Forced Convection Oven 240L | 626 x 679.5 x 1230 | Ambient + 10°C to 250°C |
Options and Accessories
| Reference | Options and Accessories |
|---|---|
| AEBSOFTPXF4 | Data recovery software delivered with RS485 cable and USB adaptor for PXF4 regulator |
| FI/OPT1 | Variable flow extractor from 0 to 200 m3/hour. Exterior Ø 75 mm for AP414 and 714 |
| AP/OPT1 | Adjustable air renewal system for AP/AE 60 and 120. Adjustment valve on the air inlet |
| AP/OPT2 | Adjustable air renewal system for AP/AE240. Double opening. |
| AP/OPT3 | Key lock for door |
| AP/OPT6 | 4 castors (80 mm diameter, including 2 with brakes) |
| AP/OPT7 | Cable entry port 50mm diameter |
| BP/OPT1 | Cable entry port 50 mm diameter with airtightness plug |
| AP/OPT7 | Cable entry port 50mm diameter with airtightness plug |
| AP/OPT8 | Pt 100 Ohms temperature probe + DIN socket (for a chart recorder connection) |
| AP/OPT9 | Pt 100 Ohms temperature probe delivered with a COFRAC verification report in 3 points |
| AP/OPT11 | 1 channel electronic recorded, continuous plotting |
| AP/OPT14 | Variable flow extractor from 0 to 200 m3/hour. Exterior Ø 75 mm |
| QUAL4 | COFRAC cartography in factory. 1 equipment, 1 set point |
| AP/RAY1 | Shelving stainless steel wire for AP/AE/BP/BE 60 (380 x 320 mm) |
| AP/RAY2 | Shelving stainless steel wire for AP/AE/BP/BE 120 and 240 (480 x 430 mm) |
| AP/ETA1 | Stainless steel shelf for AP/AE/BP/BE 60 (380 x 320mm) anti-tip safety |
| AP/ETA2 | Stainless steel shelf for AP/AE/BP/BE 120 and 240 (480 x 430 mm) Anti-tipping safety |
| AP/ETAR2 | Reinforced stainless steel shelf for AP/AE/BC/BE120 and 240 (480 x 430 mm) with anti-tip safety |
| BP/RAY3 | Supplementary shelving stainless steel wire for BP414 and 714 |
| AP/SOC1 | 1 room Base without wheels for AP/AE/BC/BE120 and 240 (H 150 mm) |
| AP/SOC2 | 1 room Base with 4 wheels. Diameter 80 mm for AP/AE/BC/BE 120 and 240 (H 250 mm) |
| AP/SUP | Stacking kit with 2 struts, one key and an explanatory note |
