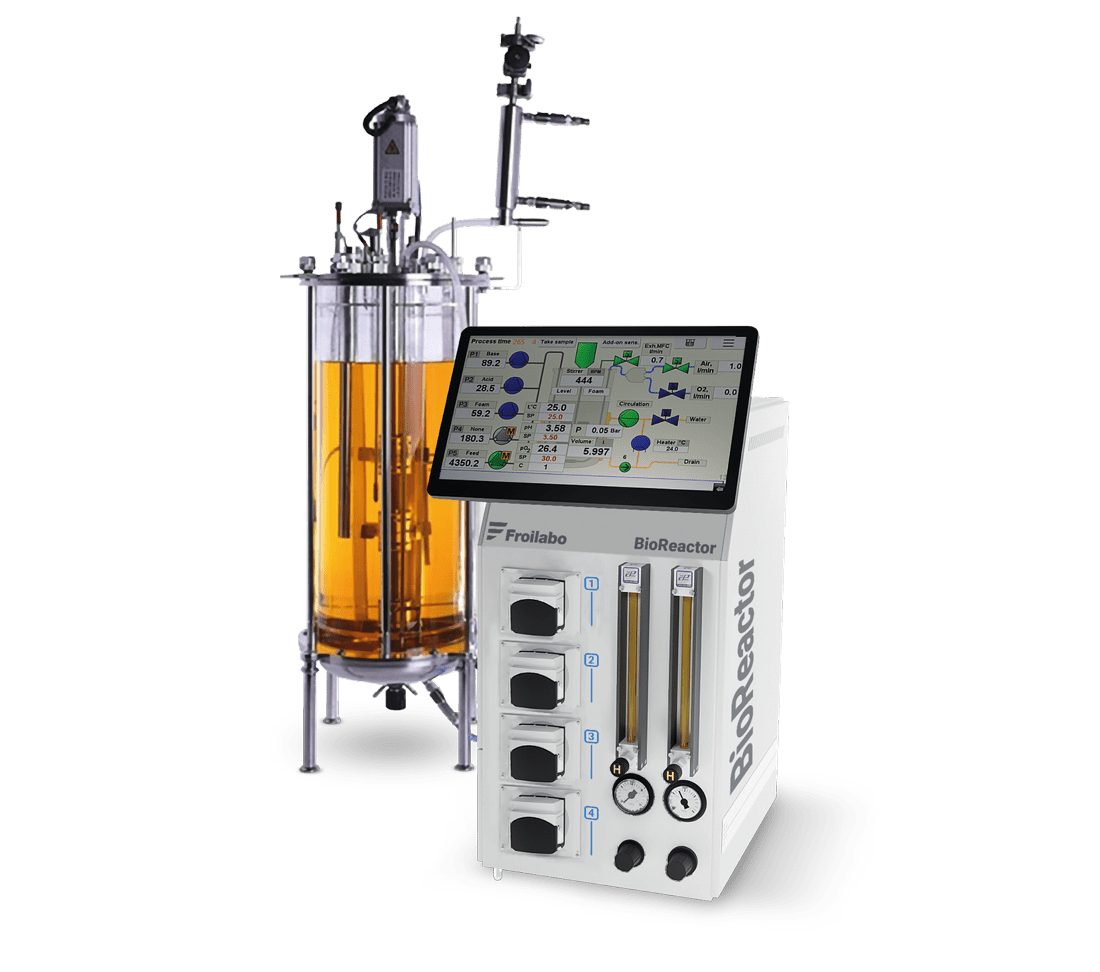

15 L Bioreactor for Cell Cultivation

15 L Bioreactor for Cell Cultivation

Novel magnetically coupled drive: eliminates the risk of contamination within the vessel since there is no mechanical seal.

Autoclavable sampling port: The sterilisable port facilitates operational activities.

Mixing and aeration: tailored for cell cultivation (plant and mammalian cells).

Uniform lid construction: No welded components within the lid for easy maintenance and sterility.

Flexible working volume: 15 L bioreactor with working volume up to 11 L.

Product Description

Our 15 L autoclavable bioreactor is designed for cell cultivation and is ideal for use within R&D and process development. The borosilicate glass vessel is mounted between a jacketed base and a non-welded lid.

The uniform lid features all the necessary ports and sensors that might be required for bioprocesses and features a convenient carrying handle. Featuring twelve ports comprising of five ports for sensor connections, three ports for bioreactor’s liquid supply, two ports for gas sparger and gas output and two spare ports that can be user defined.

There is a sterilisable sampling port conveniently located in the base of the vessel to facilitate operational activities during a process. The overall design of the reactor is simple to maintain and apply basic operations and processes.

The magnetically coupled drive which can reach up to 700 rpm ensures excellent sterility within the vessel throughout fermentation.

The bioreactor process control ensures:

Temperature (the temperature sensor (Pt100) is located in the bioreactor tank) regulation. Carried out by supplying a control signal either to the heating element or the electro-magnetic cooling water valve of the thermostat. Thermoregulation is carried out by circulation of thermostated water through the bioreactor’s jacket, which is located in the bottom lid of the vessel;

pH control. Carried out by supplying base or acid solutions to the bioreactors medium using the bioprocess controller’s peristaltic pumps;

pO2 control. Ensured by automatic adjustments of the stirrer’s rotational speed. The actual pO2 value is monitored using a pO2 electrode;

Foam control. Carried out by supplying an antifoam agent to the bioreactor’s medium using the bioprocess controller’s peristaltic pumps. The foam level is monitored using a conductivity sensor;

Feeding (of a substrate). Carried out using the bioprocess controller’s peristaltic pump and the respective feeding rate/volume is controlled by the feeding profile, which is set in the bioprocess controller;

Level control. Carried out using the bioprocess controller’s peristaltic pump. The medium level is monitored using a conductivity sensor;

Mixing. Ensured by a magnetic drive (stirrer inner shaft and impellers contain magnets), the agitator is driven by a motor which is mounted on the top lid of the bioreactor.



Optional SCADA software is available to control fermentation processes and store the process data. Additional sensors, balances and devices can be integrated in SCADA. The software can operate on a single PC, network or remotely via Internet and can control one or several bioreactors.

Our SCADA enables the possibility to communicate with MATLAB based program via OPC server. The MATLAB program ensures fed-batch automatic control by on-line comparison of mathematical model with process off-line data.

The SCADA software is developed according to the requirements of 21 CFR Part 11. The implication is that the process can be evaluated, reviewed, approved and archived without a single sheet of paper and without the possibility to falsify process data and signatures. Our SCADA software may be adapted to the special requirements of our customers upon request.

Specification

Bioreactor 15.2 (cell cultures)
Vessel
Total Volume (L) 16
Working Volume (L) 5 – 11
Inside Diameter/Inside Height (mm) 200 / 500
Ports For mixer/agitator shaft; for pH, dissolved oxygen, temperature, foam, and liquid level sensors; tree needle port for acid base and anti-foam agent addition; chemo-stat tubes for level control and addition of bioreactor feed solutions; aseptic pierce-able membrane port; in-let gas port (0.2 μm filter added); exhaust gas port (0.2 μm filter added); 2 spare ports/ The ports are 4×10 mm, 4 x 7.5 mm – 7×12 mm (PG 13.5 mm)
Sampling Double walled base ensuring bioreactor thermostating. Autoclavable aseptic sampler
Aeration
Control Rotameters (2), TMFC (optional)
Gas Supply Air/Carbon dioxide + Oxygen,
N₂ (option) Air/Carbon dioxide in headspace
Flow Range, L/min 0.5 – 20 (Air) or 0 – 10 (O₂)
Sparger Microsparger
Filters D50 mm 0.2 μm PTFE
Exhaust gas condenser Cooling from water line or chiller
Mixing
Drive Top magnetic coupling
Rotation Speed Range (rpm) 40 – 700
Mixer (Impellers) Three pitched blade impellers
Control
Controller Siemens Simatic S7 – 1500
Operator panel Touch screen Beetronics, 15TS7, 15’’
Temperature Built-in thermostat. Control range: from 5°С via coolant to 60°С. Accuracy:(measurement) +/- 0.1°C, (control) +/- 0.2°C
pH Hamilton sensors (different options, including ARC). Acid/ Base Base/СО₂ 2 – 12 +/- 0,01pH units
pO₂ Hamilton sensors (different options, including Arc). Control: mixing + air/ Oxygen/
N₂ / Carbon dioxide (option) 0 – 150 % +/- 1%
Foam Option
Feeding 0.02 – 40 ml/min according to adjusted profile
Peristaltic Pumps 4 built-in peristaltic pumps. External pump (option)
Dimensions (mm) Overall dimensions of the bioreactor (mm) 1000 (W) х 970 (H) х 600 (D)
The minimum size of the autoclave chamber for vessel autoclaving (mm)
760 (Height) х 320 (Diameter))

Options

Bioreactor Product Option
15 L Bioreactor for Cell Cultivation Optical density sensor with ARC view 265 transmitter and accessories (Hamilton)
Viable cell density sensor with ARC view 265 transmitter and accessories (Hamilton)
Methanol/ethanol gas sensor (BlueSens)
Methanol/ethanol immersed sensor (Raven Biotech)
Overpressure sensor, autoclavable, 0-1 bar, measuring accuracy +/- 0.02 bar
Overpressure control, 0-1 bar, control accuracy +/- 0.0 bar.
O2/CO2 analyzer BlueInOne Ferm (BlueSens), including flow adapter
Mass flow controller for air
Mass flow controller for O2
Volumetric oxygen mass transfer coefficient kLa, Oxygen uptake rate OUR, CO2 exchange rate CER (includes overpressure sensor and O2/CO2 analyzer)
Rushton turbine set with bushings
Microsparger
Factory accepted test FAT
SCADA for monitoring, control and reporting according the requirements of 21 CFR Part 11
